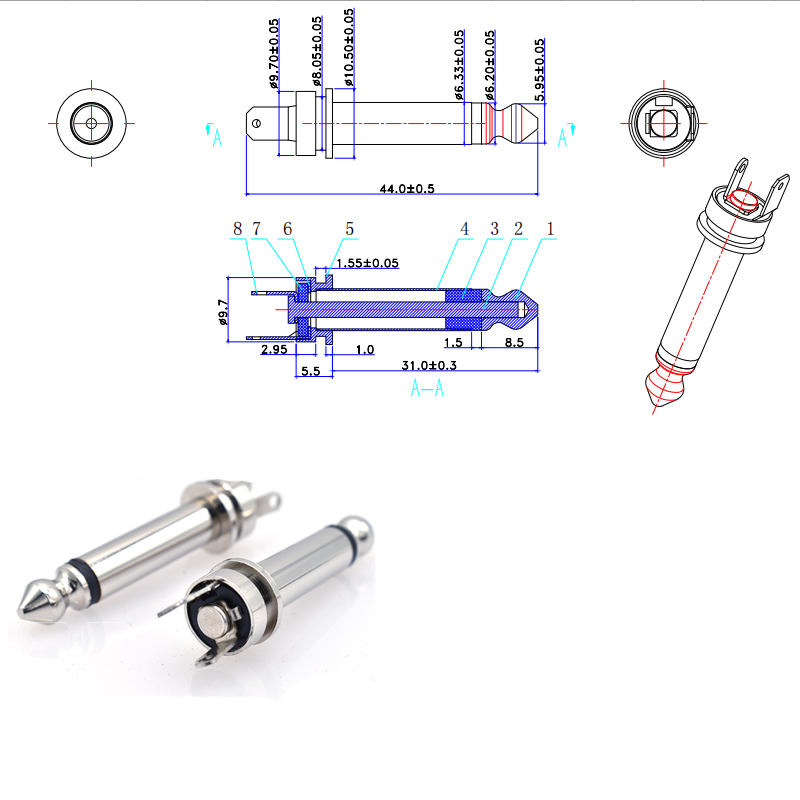

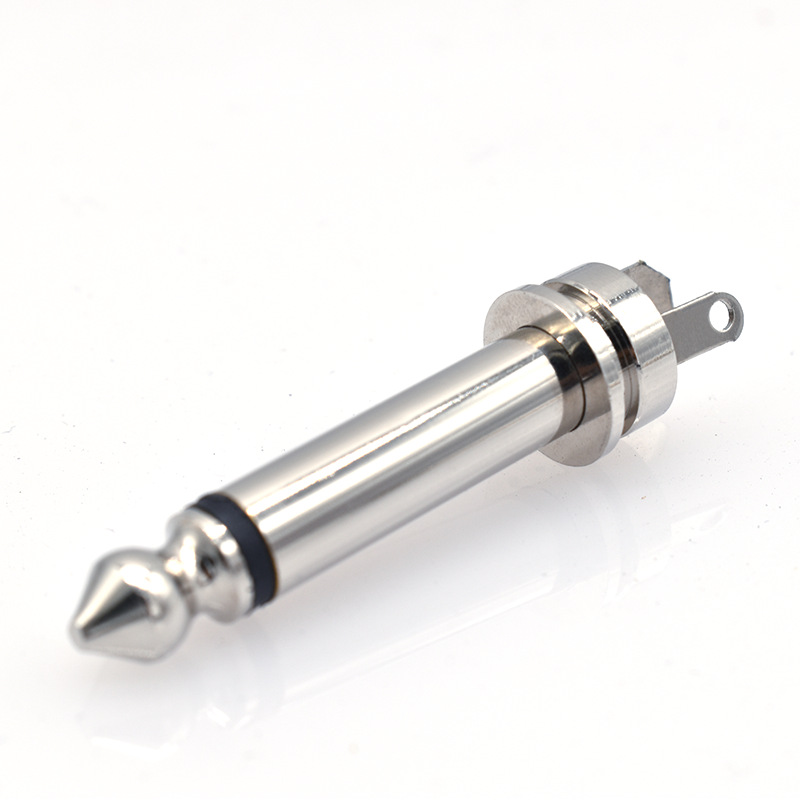

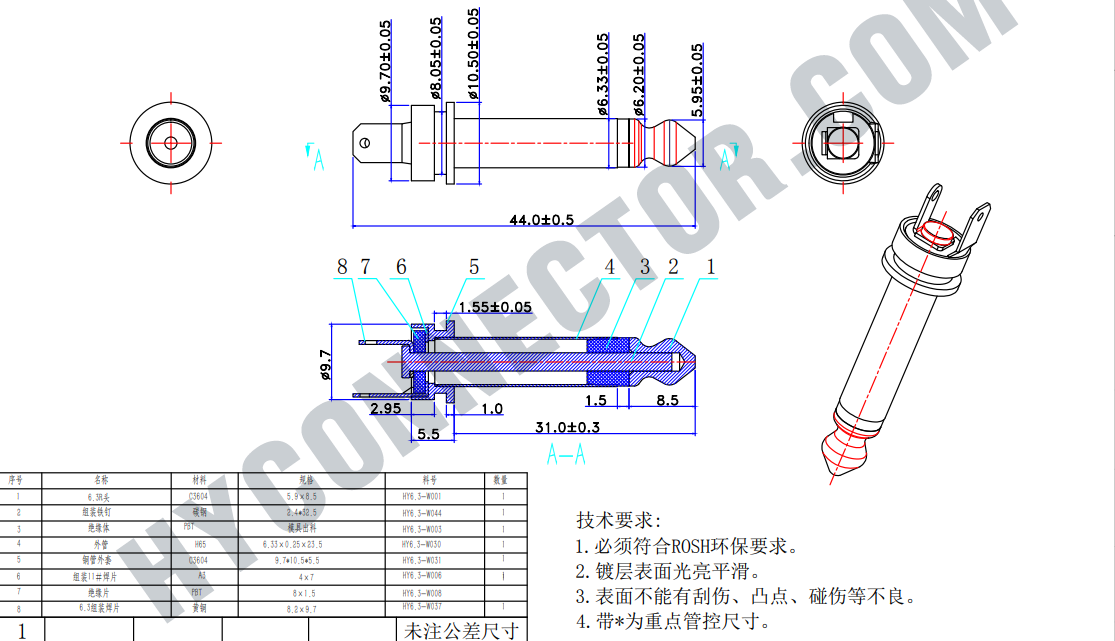

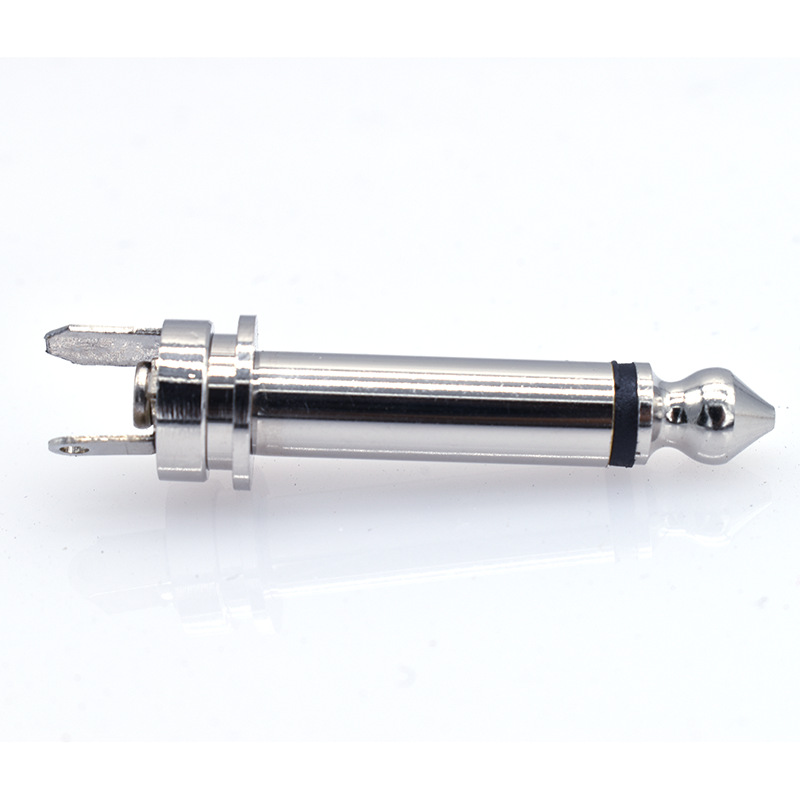

PCB Mount 1/4" Plug-Mono
- Connector Type: 6.35mm (1/4") Male Plug Signal Type: Mono / TS (2-Pole)
- Material: High-Precision CNC Brass
- Plating: Nickel (Salt Spray Tested >24h)
- Mounting: PCB Solder / Through-Hole
- Application: Audio Interface, Guitar Pedals, Wireless Transmitters
MOQ: 100pcs
Sample Policy: Free samples, please contact us
Lead Time: Within 7 days for regular , within 15 days for special
Please contact us for 3D models
| Gender | male |
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | < 50 V |
| Lifetime | > 5000 mating cycles |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Temperature range | -20 °C to +65 °C |
